- Product Description
-
- Commodity name: HT-XFJ500 small rewinder
- Commodity ID: 1134067378615373824

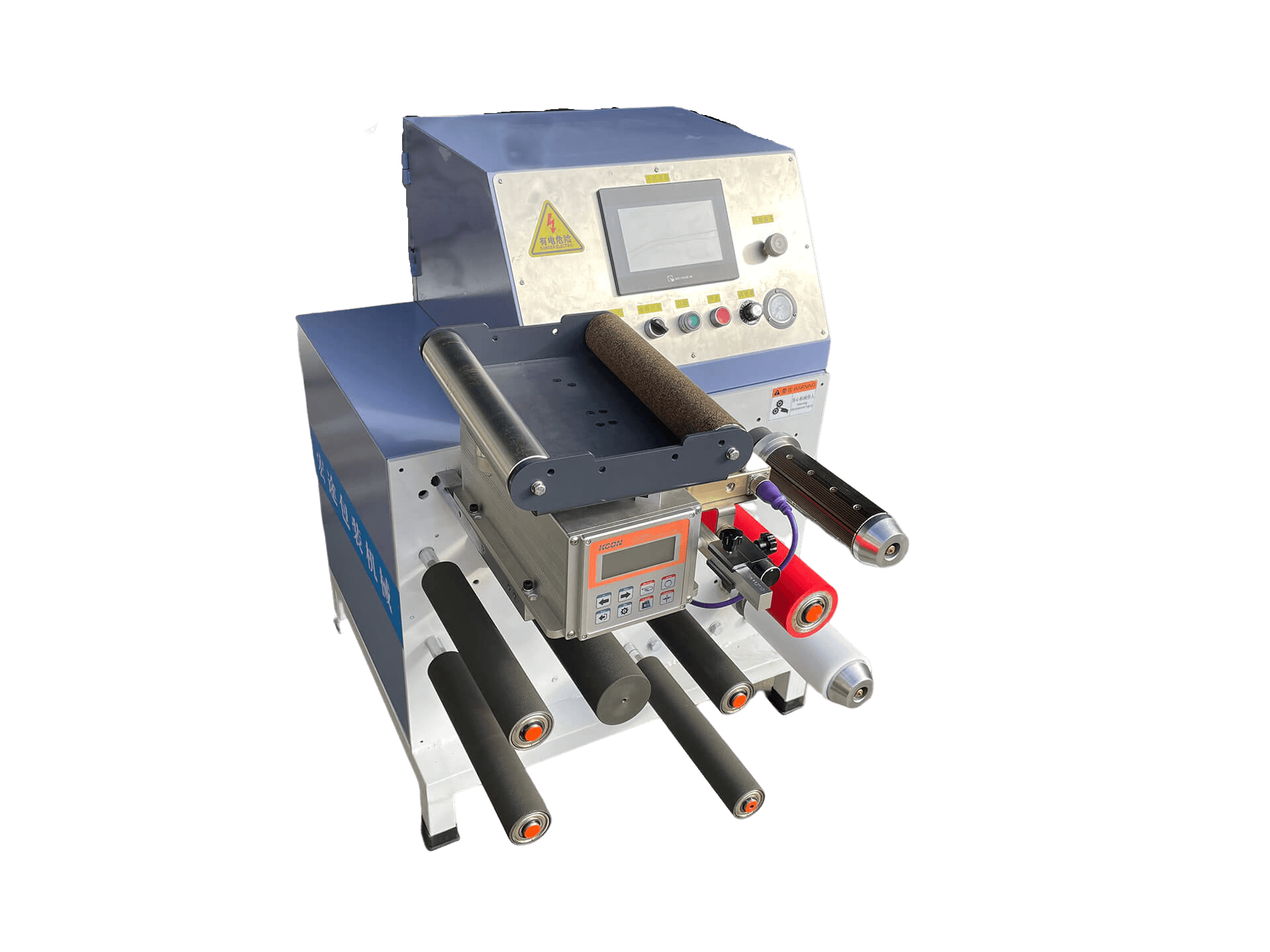

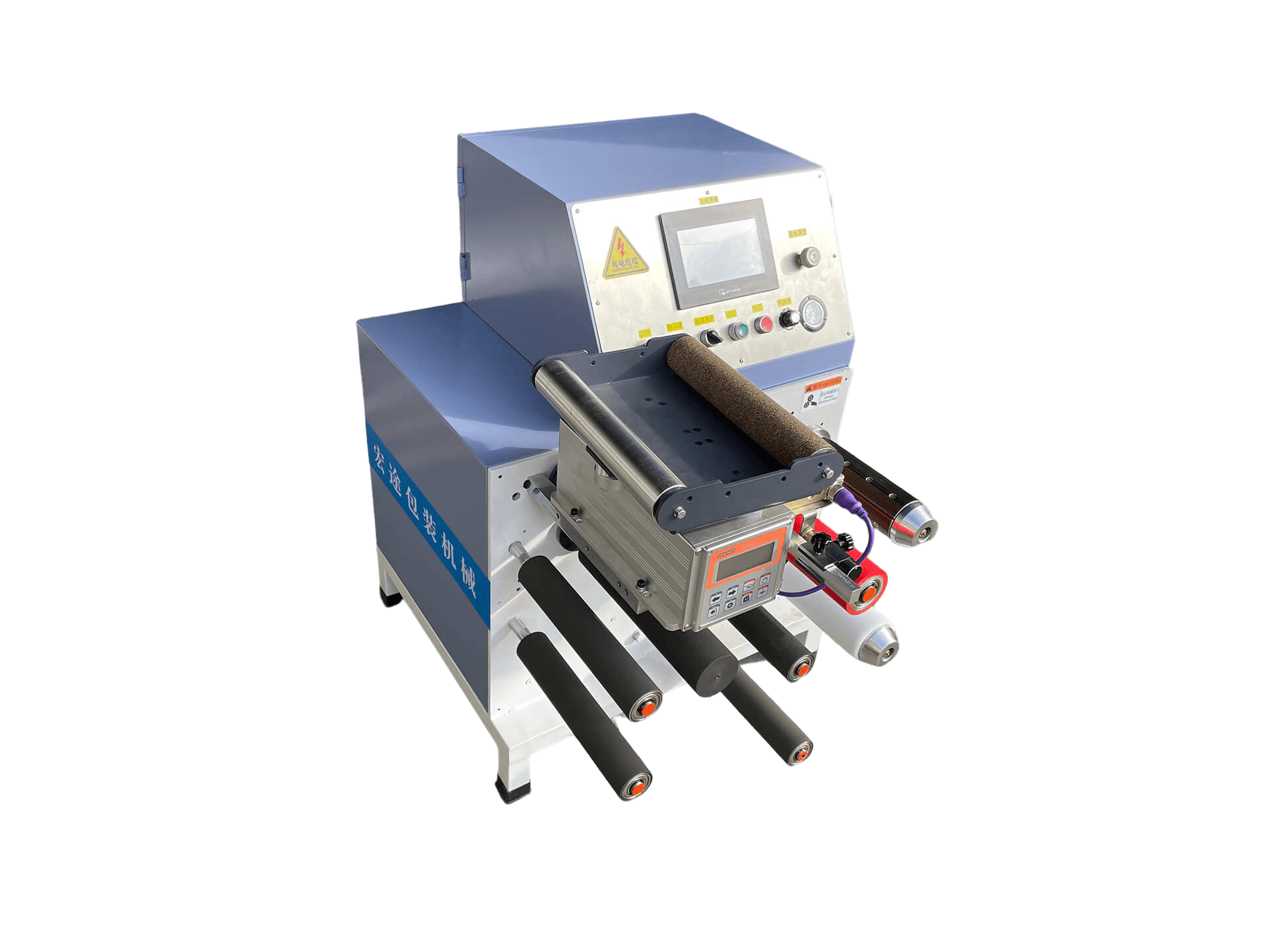

Name: HT-XFJ500 small rewinder
Application range:
This machine is used for the rewinding of oca optical adhesive, acrylic tape, pet double-sided adhesive, protective film, substrate-free double-sided adhesive and other products.
Technical Parameters
Rewinding Width: 0.2M/0.5M Maximum Pour Diameter: Φ 350mm
Paper Tube Inner Diameter: 3 "
Maximum Coiling Diameter: Φ 350mm
Maximum Coiling Speed: 0~160 M/min
Features
1. This machine is fully automated program controlled and uses 7" touch screen for centralized operation.
2. With EPC automatic correction machine, professional for deformation and unqualified products.
3. stepless frequency conversion speed regulation, encoder counting control length, length precision.
4. The winding shaft is matched with an imported silicone pressure roller with a diameter of 180MM, and can be rewound with ultra-transparent and bubble-free products
